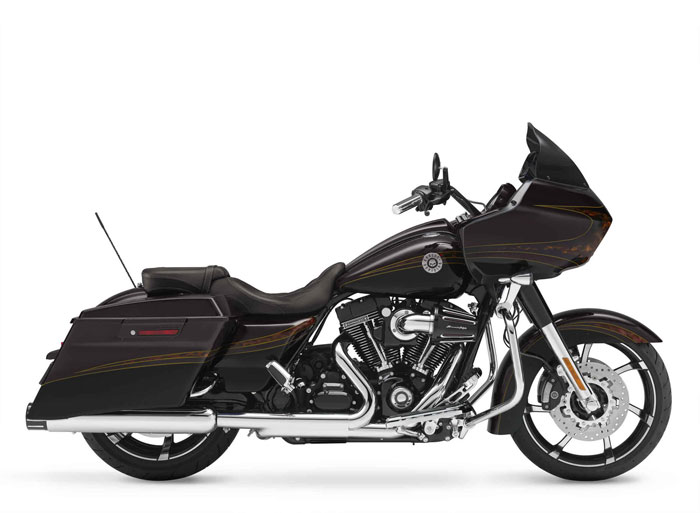

2012 Harley Davidson FLTRXSE CVO Road Glide Custom
The 2012 Harley Davidson FLTRXSE CVO™ Road Glide Custom is made on the innovative Harley-Davidson Touring chassis, primarily based on a single-spar, rigid backbone frame and swingarm developed to face up to the strain of long-haul touring riders.
Harley-Davidson is offering an all-new CVO model for 2012:
Candy Cobalt / Twilight Blue with Real Smoke graphics
White Gold Pearl / Starfire Black with Real Smoke
graphics
Maple Metallic / Vivid Black with Real Smoke graphics
This hot-rod bagger combines a distinctive shark-nose, frame-mounted fairing with a road-hugging, slammed profile for a look that's sure to turn heads. A high-output, amplified Harman/Kardon Advanced Audio radio features CD/AM/FM/WB and delivers 100 watts per channel to five-by-seven-inch fairing-mount speakers and two-inch dash-mount tweeters. An included 8GB Apple iPod nano connects via an interface and holder located in the right-side saddlebag. Exclusive custom features include a smoked Wind Splitter windshield; a two-piece custom seat with removable pillion and color-coordinated stitching and cover; and a color-matched, low-profile fuel tank console with illuminated CVO graphic insert. A 19-inch Contrast Chrome Agitator Custom front wheel leads this beauty down the road.
Harley-Davidson Custom Vehicle Operations™ takes bagger swagger to a new level with the 2012 CVO Road GlideR Custom, a chrome-drenched, shark-nosed beauty that snarls with Screamin' Eagle authority. This limited-production motorcycle features the most-powerful V-Twin engine offered by Harley-Davidson, an exclusive multi-color paint scheme, a new high-output sound system and a host of fresh custom components. Bombing the boulevard or scorching the highway, the CVO Road GlideR Custom offers an unmatched hot-rod touring experience.
CVO motorcycles are customized using exclusive
components and paint treatments combined with premium accessories from the Harley-Davidson Genuine Motor Accessories catalog. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.
The CVO Road Glide Custom features a distinctive,
frame-mounted fairing that offers a lighter steering feel than a fork-mounted fairing, and incorporatesdual headlamps and a cockpit-style instrument display. Its Harley-Davidson Touring chassis has a single-spar, rigid backbone frame and two-piece swingarm designed to deliver responsive maneuverability and long-haul durability. Chassis geometry and suspension are calibrated to deliver confident handling and comfort. Hand-adjustable hydraulic rear shocks accommodate variable passenger and luggage loads. An Anti-lock Braking System (ABS) and cruise control are standard equipment.
Harley-Davidson Custom Vehicle Operations (CVO)™ emphasizes exclusive styling and inspiring
performance with four limited-production motorcycle models for 2012. Decked out with bold paint, gleaming chrome, high-output audio and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles, each CVO model is a rolling object of desire for the discerning motorcyclist.
Each 2012 CVO model is powered by the fuel-injected Twin Cam 110™ V-Twin, the largest-displacement engine offered in a Harley-Davidson motorcycle, rated at up to 122 ft. lbs. of torque. This engine is only available from the factory in CVO models. CVO motorcycles are customized using premium accessories and paint treatments combined with numerous items from the Harley-Davidson Genuine Motor Accessories catalog. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.
2012 Harley-Davidson FLTRXSE CVO Road Glide Custom - USA Specifications / Technical Details
US MSRP Price: $30,699 USD
Engine
Engine Air-cooled, Twin Cam 110™
Valves Pushrod-operated, overhead valves with
hydraulic, self-adjusting lifters; two-valves per
cylinder
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement 110 cu. in. (1802 cc)
Compression Ratio 9.15:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Screaming EagleR Heavy Breather with
gloss black cover, high flow backplate, exposed element, and rain sock
Lubrication System Pressurized, dry-sump
Performance
Engine Torque5 (per J1349):
North America 122 ft. lbs. @ 3750 RPM (165.4076
Nm @ 3750 RPM)
Lean Angle (per J1168):
Right 32z
Left 30z
Chassis
Frame Mild steel; tubular frame, two-piece stamped
and welded backbone; cast and forged junctions; twin
down tubes; bolt-on rear frame with forged fender
supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic with blow-by valve
Rear Shocks Hydraulic, adjustable
Wheels4: Contrast Chrome Agitator Custom
Wheels
Front 19 in. x 3.5 in. (483 mm x 89 mm)
Rear 18 in. x 5 in. (457 mm x 127 mm)
Dimensions
Length 96.2 in. (2443 mm)
Overall Width 35.8 in. (909 mm)
Overall Height 52.8 in. (1340 mm)
Seat Height:
Laden2 26.6 in. (676 mm)
Unladen 27.5 in. (699 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26z
Fork Angle 29.3z
Trail 6.69 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (DunlopR Harley-DavidsonR Series, bias
blackwall front and rear):
Front - D408 130/60B19 61H
Rear - D407 180/55B18 80H
Fuel Capacity 6.0 gal. (22.7 L) (warning light at
approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.4 qts. (1.3 L)
Brakes:
Caliper Type 32 mm, 4-piston fixed front and rear
Rotor Type (diameter x width): Dual floating rotors
(front), fixed rotor (rear)
Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
Rear 11.81 in. x .28 in. (300 mm x 7 mm)
Anti-lock Braking System: Standard
Suspension Travel:
Front Wheel 4.6 in. (117 mm)
Rear Wheel 2 in. (51 mm)
Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system (585W @ 13V,
2000 RPM, 650W max power @ 13V)
Starting 1.4kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp (dual bulb halogen) 55-watt low beam,
120-watt high beam
Tail / Stop Lights Combination LED
Turn Signal Lights 28W
Indicator Lamps: High beam, running lights, neutral,
low oil pressure, engine diagnostics, turn signals,
security system7, 6-Speed, low fuel warning, cruise
control, ABS
Weight:
As Shipped 807 lbs. (366.0 kg)
In Running Order 845 lbs. (383.2 kg)
Gross Vehicle Weight Rating
Gross Axle Weight Rating: 1360 lbs. (616.8 kg)
Front 500 lbs. (226.8 kg) A Rear 927 lbs. (420.5 kg)
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Hydraulically activated, 9-plate wet with high
performance spring
Transmission 6-Speed Cruise DriveR Gear Ratios (overall): U.S.
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875
Fuel Economy6 (EPA urban/highway test) 41 mpg (5.7
L/100 km) COLOR OPTIONS
2012 Harley Davidson FLTRXSE CVO™ Road Glide Custom Colors
* White Gold Pearl / Starfire Black with Real Smoke
graphics
* Maple Metallic / Vivid Black with Real Smoke graphics
* Candy Cobalt / Twilight Blue with Real Smoke graphics
