Motorbike Update

2011 Kawasaki Ninja ZX-14 USA and Canada Specifications

2011 kawasaki ninja zx-14 specification

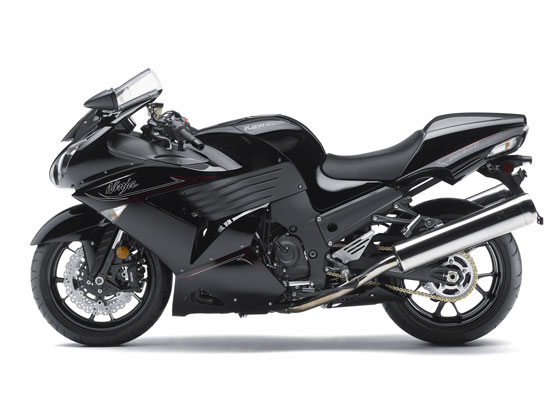

2011 kawasaki ninja zx-14 black color

2011 kawasaki ninja zx-14 green color

2011 Kawasaki Ninja ZX-14 - USA Specifications
MSRP: $13,599 USD

Engine: Four-stroke, liquid-cooled, DOHC, four
valve per cylinder, inline-four
Displacement: 1,352cc
Bore x stroke: 84.0 x 61.0mm
Compression ratio: 12.0:1
Fuel system: DFI® with four 44mm Mikuni throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six-speed
Final drive: X-Ring chain
Rake / trail: 23 degrees / 3.7 in.
Front tire: 120/70 ZR17 Rear tire: 190/50 ZR17
Wheelbase: 57.5 in.
Front suspension / wheel travel: 43mm
inverted cartridge fork with adjustable
preload, 13-way compression and 11-way
rebound damping adjustment / 4.6 in. Rear suspension / wheel travel: Bottom-link
Uni-Trak® and gas-charged shock with
adjustable preload, stepless rebound and
compression damping adjustments,
adjustable ride height / 4.8 in.
Front brakes: Dual semi-floating 310 mm petal discs with dual radial-mounted four-piston
calipers
Rear brakes: Single 250mm petal disc with
twin-piston caliper
Overall length: 85.4 in.
Overall width: 29.9 in. Overall height: 46.1 in.
Ground clearance: 4.9 in.
Seat height: 31.5 in.
Curb weight: 566.7 lbs.
Fuel capacity: 5.8 gal.
Color: Candy Lime Green / Ebony, Ebony Warranty: 12 Months

2011 Kawasaki Ninja ZX-14 - Canada
Specifications

MSRP: $16,099 CDN

ENGINE
Type 4-stroke, liquid cooled, In-Line Four
Displacement 1352 cc
Bore and Stroke 84.0 x 61.0 mm
Compression Ratio 12.0 :1
Fuel Injection ø 44 mm x 4 (Keihin) Valve System DOHC, 16 valves
Lubrication Forced lubrication, wet sump

DRIVETRAIN
Transmission 6-speed, return, positive
neutral finder
Clutch Wet multi-disc, hydraulic actuation
Final Reduction Ratio 2.412 (41/17)
Final Drive Sealed Chain Primary Reduction Ratio 1.541 (94/61)
Gear Ratios: 1st 2.625 (42/16)
2nd 1.947 (37/19)
3rd 1.545 (34/22)
4th 1.333 (32/24)
5th 1.154 (30/26)
6th 1.036 (29/28)

FRAME
Type Monocoque, aluminum
Tires: Front 120/70ZR17
Wheel Travel: Front 117 mm
Tires: Rear 190/50ZR17
Wheel Travel: Rear 122 mm Caster (Rake) 23º
Trail 94 mm
Steering Angle (Left/Right) 30º/30º

SUSPENSION
Suspension, Front 43 mm inverted fork. 13-
click compression damping, 11-click rebound
damping, and stepless ride height
Suspension, Rear Bottom-Link Uni-Trak with gas charged shock. Stepless compression damping, stepless rebound damping, and stepless spring preload

BRAKES
Front: Type Dual semi-floating 310 mm drilled,
petal style discs
Front: Calipers Dual, opposed 4-piston, 4-pad,
radial mount
Rear: Type Single 250 mm drilled, petal style disc
Rear: Calipers Opposed 2-piston

PERFORMANCE
Maximum Power 193PS @ 9,500rpm
Maximum Power w/ Ram Air 203PS @ 9,500rpm
Maximum Torque 154 N-m @7,500rpm

DIMENSIONS
Overall Length 2,170 mm
Overall Width 760 mm
Overall Height 1,170 mm
Wheelbase 1,460 mm
Seat Height 800 mm Curb Mass 257 kg
Fuel Capacity 22 litres
Fuel Consumption 6.7 L/100 km (42 MPG)

DETAILS
MSRP* $16,099.00
Colours Ebony
Warranty 12 months
2011 Kawasaki Ninja ZX-14 USA and Canada Specifications Reviewed by Dening Nyess on Rating: 4.5
